MsgBox
The MsgBox is a dialog box in Excel VBA you can use to inform the users of your program. Place a command button on your worksheet and add the following code lines:
1. A simple message.
MsgBox "This is fun"
Result when you click the command button on the sheet:

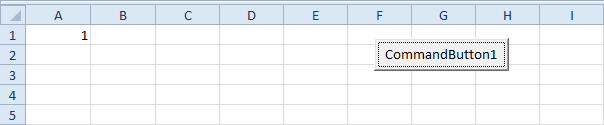

2. A little more advanced message. First, enter a number into cell A1.
MsgBox "Entered value is " & Range("A1").Value
Result when you click the command button on the sheet:
Note: we used the & operator to concatenate (join) two strings. Although Range("A1").value is not a string, it works here.
3. To start a new line in a message, use vbNewLine.
MsgBox "Line 1" & vbNewLine & "Line 2"
Result when you click the command button on the sheet:
MsgBox Function
The MsgBox function in Excel VBA can return a result while a simple MsgBox cannot.
Situation:
1. First, we declare a variable called answer of type Integer.
Dim answer As Integer
2. We use the MsgBox function to initialize the variable answer with the input from the user.
The MsgBox function, when using parentheses, has three arguments. The first part is used for the message in the message box. Use the second part to specify which buttons and icons you want to appear in the message box. The third part is displayed in the title bar of the message box.

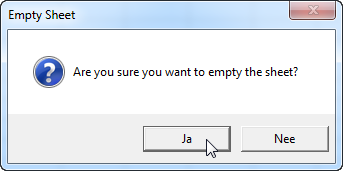

answer = MsgBox("Are you sure you want to empty the sheet?", vbYesNo + vbQuestion, "Empty Sheet")
Note: Place your cursor on vbYesNo in the Visual Basic Editor and click F1 to see which other buttons and icons you can use. Instead of the constants vbYesNo and vbQuestion, you can also use the corresponding values 4 and 32.
3. If the user clicks the Yes button, Excel VBA empties the sheet. If the user clicks the No button, nothing happens. Add the following code lines to achieve this.
If answer = vbYes Then
Cells.ClearContents
Else
'do nothing
End If
Cells.ClearContents
Else
'do nothing
End If
4. Click the command button on the sheet.
5. Click Yes.

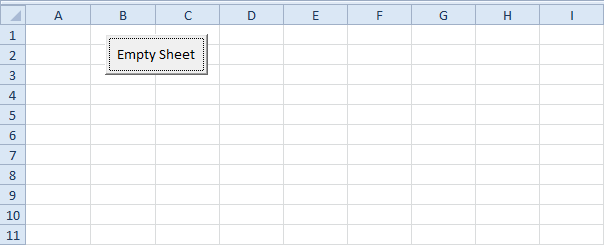

Result:
InputBox Function
You can use the InputBox function in Excel VBA to prompt the user to enter a value. Place a command button on your worksheet and add the following code lines:
1. First, declare the variable myValue of type Variant.
Dim myValue As Variant
Note: we use a variable of type Variant here because a Variant variable can hold any type of value. This way the user can enter text, numbers, etc.

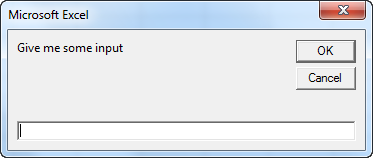

2. Add the following code line to show the input box.
myValue = InputBox("Give me some input")
3. Write the value of myValue to cell A1.
Range("A1").Value = myValue
Result when the user enters the value 5 and clicks the OK button.
4. The InputBox function has more optional arguments. The following code line shows an input box with a title displayed in the title bar and has a default value. The default value will be used if no other input is provided.
myValue = InputBox("Give me some input", "Hi", 1)

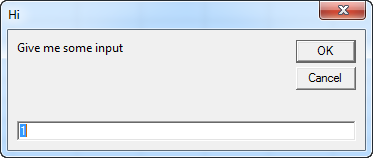

Result when the user only clicks the OK button.
Note: Place your cursor on InputBox in the Visual Basic Editor and click F1 for help on the other optional arguments.
inputBox Function
You can use the InputBox function in Excel VBA to prompt the user to enter a value. Place a command button on your worksheet and add the following code lines:
1. First, declare the variable myValue of type Variant.
Dim myValue As Variant
Note: we use a variable of type Variant here because a Variant variable can hold any type of value. This way the user can enter text, numbers, etc.
2. Add the following code line to show the input box.
myValue = InputBox("Give me some input")
3. Write the value of myValue to cell A1.
Range("A1").Value = myValue
Result when the user enters the value 5 and clicks the OK button.
4. The InputBox function has more optional arguments. The following code line shows an input box with a title displayed in the title bar and has a default value. The default value will be used if no other input is provided.
myValue = InputBox("Give me some input", "Hi", 1)
Result when the user only clicks the OK button.
Note: Place your cursor on InputBox in the Visual Basic Editor and click F1 for help on the other optional arguments.
IfThen Statement
Use the If Then statement in Excel VBA to execute code lines if a specific condition is met.
If Then Statement
Dim score As Integer, result As String
score = Range("A1").Value
If score >= 60 Then result = "pass"
Range("B1").Value = result
Explanation: if score is greater than or equal to 60, Excel VBA returns pass.

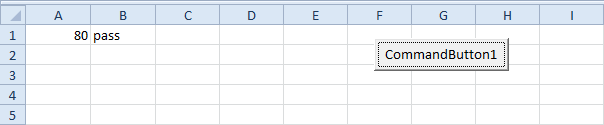

Result when you click the command button on the sheet:
Note: if score is less than 60, Excel VBA places the value of the empty variable result into cell B1.
Else Statement
Dim score As Integer, result As String
score = Range("A1").Value
If score >= 60 Then
result = "pass"
Else
result = "fail"
End If
Range("B1").Value = result
Explanation: if score is greater than or equal to 60, Excel VBA returns pass, else Excel VBA returns fail.

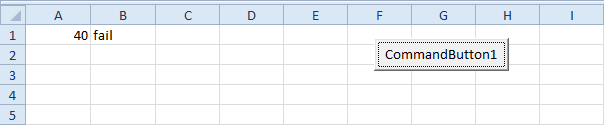

Result when you click the command button on the sheet:
Note: only if you have one code line after Then and no Else statement, it is allowed to place a code line directly after Then and to omit (leave out) End If (first example). Otherwise start a new line after the words Then and Else and end with End If (second example).
Logical Operators
The three most used logical operators in Excel VBA are: And, Or and Not. As always, we will use easy examples to make things more clear.
Logical Operator And
Dim score1 As Integer, score2 As Integer, result As String
score1 = Range("A1").Value
score2 = Range("B1").Value
If score1 >= 60 And score2 > 1 Then
result = "pass"
Else
result = "fail"
End If
Range("C1").Value = result
Explanation: if score1 is greater than or equal to 60 and score2 is greater than 1, Excel VBA returns pass, else Excel VBA returns fail.
Result when you click the command button on the sheet:
Conclusion: Excel VBA returns fail because score2 is not greater than 1.
Logical Operator Or
Dim score1 As Integer, score2 As Integer, result As String
score1 = Range("A1").Value
score2 = Range("B1").Value
If score1 >= 60 Or score2 > 1 Then
result = "pass"
Else
result = "fail"
End If
Range("C1").Value = result
Explanation: if score1 is greater than or equal to 60 or score2 is greater than 1, Excel VBA returns pass, else Excel VBA returns fail.
Result when you click the command button on the sheet:
Conclusion: Excel VBA returns pass because score1 is greater than or equal to 60.
Logical Operator Not
Dim score1 As Integer, score2 As Integer, result As String
score1 = Range("A1").Value
score2 = Range("B1").Value
If score1 >= 60 And Not score2 = 1 Then
result = "pass"
Else
result = "fail"
End If
Range("C1").Value = result
Explanation: if score1 is greater than or equal to 60 and score2 is not equal to 1, Excel VBA returns pass, else Excel VBA returns fail.
Result when you click the command button on the sheet:
Conclusion: Excel VBA returns fail because score2 is equal to 1.
Select Case
Instead of multiple If Then statements in Excel VBA, you can use the Select Case structure.

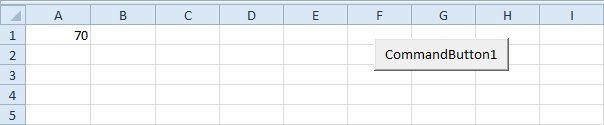

Situation:
1. First, declare two variables. One variable of type Integer named score and one variable of type String named result.
Dim score As Integer, result As String
2. We initialize the variable score with the value of cell A1.
score = Range("A1").Value
3. Add the Select Case structure.
Select Case score
Case Is >= 80
result = "very good"
Case Is >= 70
result = "good"
Case Is >= 60
result = "sufficient"
Case Else
result = "insufficient"
End Select
Explanation: Excel VBA uses the value of the variable score to test each subsequent Case statement to see if the code under the Case statement should be executed.
4. Write the value of the variable result to cell B1.
Range("B1").Value = result
5. Test the program.

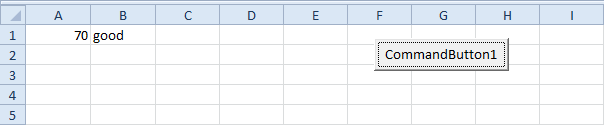

Result when you click the command button on the sheet:
Note: Excel VBA executes the code under the second Case statement for all values greater than or equal to 70 and less than 80.
Tax Rates
Below we will look at a program in Excel VBA that calculates the tax on an income. The following tax rates apply to individuals who are residents of Australia.
Taxable income
|
Tax on this income
|
0 - $6,000
|
Nil
|
$6,001 - $35,000
|
15c for each $1 over $6,000
|
$35,001 - $80,000
|
$4,350 plus 30c for each $1 over $35,000
|
$80,001 - $180,000
|
$17,850 plus 38c for each $1 over $80,000
|
$180,001 and over
|
$55,850 plus 45c for each $1 over $180,000
|
Situation:
1. First, we declare two double variables. One double variable we call income, and one double variable we call tax.
Dim income As Double
Dim tax As Double
2. We initialize the variable income with the value of cell A2 and round it.
income = Round(Range("A2").Value)
3. We place the rounded value into cell A2 again.
Range("A2").Value = income
4. We use the Select Case statement to calculate the tax on an income. Excel VBA uses income to test each subsequent Case statement to see if the code under the Case statement should be executed.
Select Case income
Case Is >= 180001
tax = 55850 + 0.45 * (income - 180000)
Case Is >= 80001
tax = 17850 + 0.38 * (income - 80000)
Case Is >= 35001
tax = 4350 + 0.3 * (income - 35000)
Case Is >= 6001
tax = 0.15 * (income - 6000)
Case Else
tax = 0
End Select
Example: if income is 37000, tax equals 4350 + 0.3 * (37000-35000) = 4350 + 600 = $4950
5. We write the value of the variable tax to cell B2.
Range("B2").Value = tax
6. Place this code in a command button and test it.

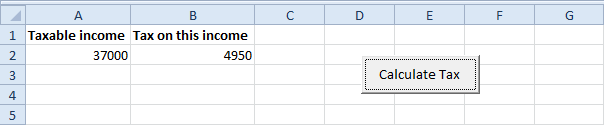

Result:
Find Second Highest Value
Below we will look at a program in Excel VBA that finds the second highest value.

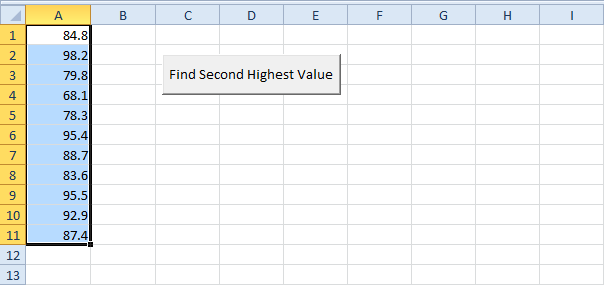

Situation:
1. First, we declare two Range objects and two variables of type Double. We call the Range objects rng and cell. One double variable we call highestValue, and one double variable we call secondHighestValue.
Dim rng As Range, cell As Range
Dim highestValue As Double, secondHighestValue As Double
2. We initialize the Range object rng with the selected range and the two Double variables with value 0.
Set rng = Selection
highestValue = 0
secondHighestValue = 0
3. First, we want to find the highest value. We want to check each cell in a randomly selected range (this range can be of any size). In Excel VBA, you can use the For Each Next loop for this. Add the following code lines:
'Find Highest Value
For Each cell In rng
Next cell
Note: rng and cell are randomly chosen here, you can use any names. Remember to refer to these names in the rest of your code. The green line is a comment and is only added here to provide information about this piece of code.
4. We check each cell in this range. If it's higher than highestValue, we write the value to the variable highestValue. Add the following code line to the loop.
If cell.Value > highestValue Then highestValue = cell.Value
Note: the first value is always higher than highestValue because the starting value of highestValue is 0.
5. Second, we want to find the second highest Value. We add another For Each Next loop.
'Find Second Highest Value
For Each cell In rng
Next cell
6. We check each cell in the selected range again. If it's higher than secondHighestValue and lower than highestValue, we write the value to the variable secondHighestValue. Add the following code line to the loop.
If cell.Value > secondHighestValue And cell.Value < highestValue ThensecondHighestValue = cell.Value
7. Finally, we display the second highest value using a MsgBox.
MsgBox "Second Highest Value is " & secondHighestValue
8. Place your macro in a command button, select the numbers, and click on the command button.
Result:
Sum by Color
Below we will look at a program in Excel VBA that sums numbers by color.
Situation:
You have lended money to two twelve people. Some people have given it back (in black) and some still owe you money (red). You want to know how much money you still receive.
1. First, we declare two variables of type Integer. One named toReceive and one named i. We initialize the variable toReceive with value 0.
Dim toReceive As Integer, i As Integer
toReceive = 0
2. Second, we start a For Next loop.
For i = 1 To 12
3. We now check each number and only if the color of the number is red we add the number to toReceive.
If Cells(i, 1).Font.Color = vbRed Then
toReceive = toReceive + Cells(i, 1).Value
End If
4. Don't forget to close the loop.
Next i
5. Finally, we display the money still to receive. We use the & operator to concatenate (join) two strings. Although toReceive is not a string it works here.
MsgBox "Still to receive " & toReceive & " dollars"
6. Place your macro in a command button and test it.
Result:
Delete Blank Cells
Below we will look at a program in Excel VBA that deletes blank cells.
Situation:
1. First, we declare two variables of type Integer. One named counter and one named i. We initialize the variable counter with value 0.
Dim counter As Integer, i As Integer
counter = 0
2. Next, we check for each cell whether it is empty or not (<> means not equal to). We are using a loop for this. If not empty, we write the value to column B. The counter holds track of the number of cells that have been copied to column B. Each time we copy a value to column B, we increment counter by 1. This piece of the program looks as follows:
For i = 1 To 10
If Cells(i, 1).Value <> "" Then
Cells(counter + 1, 2).Value = Cells(i, 1).Value
counter = counter + 1
End If
Next i

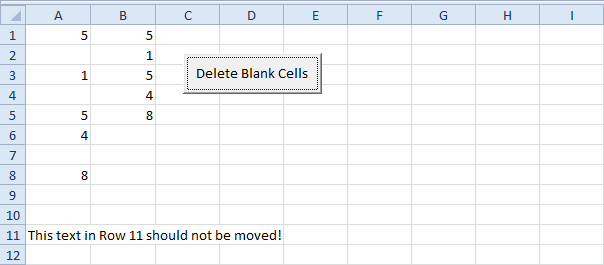

Result so far:
3. Finally, we empty Range("A1:A10"), copy the values of column B to column A, and empty Range("B1:B10").
Range("A1:A10").Value = ""
Range("A1:A10").Value = Range("B1:B10").Value
Range("B1:B10") = ""

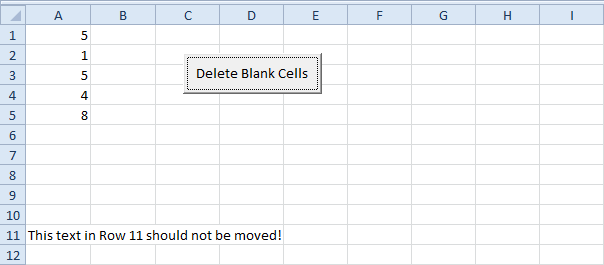

Result:
